Recessed Downlight

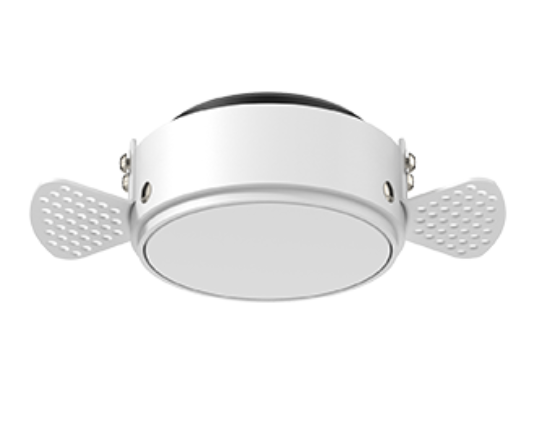

Yoda-II-Flush
Add "T" for Trimmed Add "F" for Flush-plaster in bezel
Product Overview
The NEW YODA range incorporating the Latest, Site replaceable CLU703 - CITIZEN VIVID COB, Tiny 4.2mm LES and very high led Density Give outstanding Control & Efficacy, coupled with the Yoda’s ingenious modularity delivers an outstanding package for universal usage. The Recessed non-adjustable Totally flush version can have Opal / Woven or Ribbed glass lenses with trimmed or trimless UNIVERSAL bezels, ideal for a shower or where you simply want a clean Wide distribution. Our Yoda II range features universal sizing and System universality. Fit our bezels and any of our variants can be fitted into those bezels: fixed/directional/wall wash/snoot/deep snoot etc.
Technical Specifications
Electrical Performance
Wattage
6W
Lumen Output
424lms
Input Voltage/Current
36V/150mA
Typical Efficacy (lm/W)
70Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 27003000350040005000CRI95 |
| Beam Angles (º) | 80º |
| Finishes (Baffle) | White - Ral 9010 (W) |
| Finishes (Body/Bezel) | White - Ral 9010 (W) Black - Ral 9005 (B) |
| Accessories | N/A |
| IP Rating | 56 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Wall | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | Cutout - ⌀75mmTrimless - ⌀72mmOD trimmed - ⌀82mmDepth 10W - 66mm |
| Typ Product Code | Yoda-II-FL-F6270080MBWTR |
