Product Overview
The NEW Cove-Flex ING13.5x24.5 profile is fitted with the Ingenious IP20HD, 10mm wide High Density LED board is a top quality LED strip designed for general use, engineered for realiabilty & longevity, The 10mm Wide, 2oz, 5 Amp rated Buss bar PCB construction can carry >120W of load powered from one end, all design criteria is to ensure reliability over the lifetime of the luminaire. A Typical 1M long section with MAX-14.4W = 1195lm Distrbution = 70º Opal Diffuser = 75% Frosted Diffuser = 88% Clear Diffuser = 97% Black Diffuser = 21% Accessories: Plastic Endcap / Stainless Wall / Ceiling clip / Aluminium diffuser / Suspension kits / CNC Aluminium End caps / Joiners - 60/90/120/180º (X&Y axis available)
Technical Specifications
Electrical Performance
Wattage
4.8W•M•9.6W•M•14.4W•M•19.2W•M•24W•M
Lumen Output
4.8W•M - 450lm•M•9.6W•M - 860lm•M•14.4W•M - 1195lm•M•19.2W•M - 1535lm•M•24W•M - 1870lm•M
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
78>93Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 2200K - "922"2500K - "925"2700K - "927"3000K - "930"3500K - "935"4000K - "940"5000K - "850"6500K - "865" |
| Beam Angles (º) | 70 |
| Finishes (Baffle) | N A |
| Finishes (Body/Bezel) | Silver Anodised - "SAN" White RAL9010 - "WH" White RAL9016 - "PWH" Black RAL 9005 - "BK" Anodised & SpecialRAL BS colours on request |
| Accessories | Accessories: Plastic EndcapStainless WallCeiling clipAluminium diffuserSuspension kitsCNC Aluminium End capsJoiners - 6090120180º (X&Y axis available) |
| Energy Efficiency Class | G>E |
| Control / Driver Options | Triac (TR)0-10V (010)DALI (DA)Bluetooth (BT)DMX (DMX) |

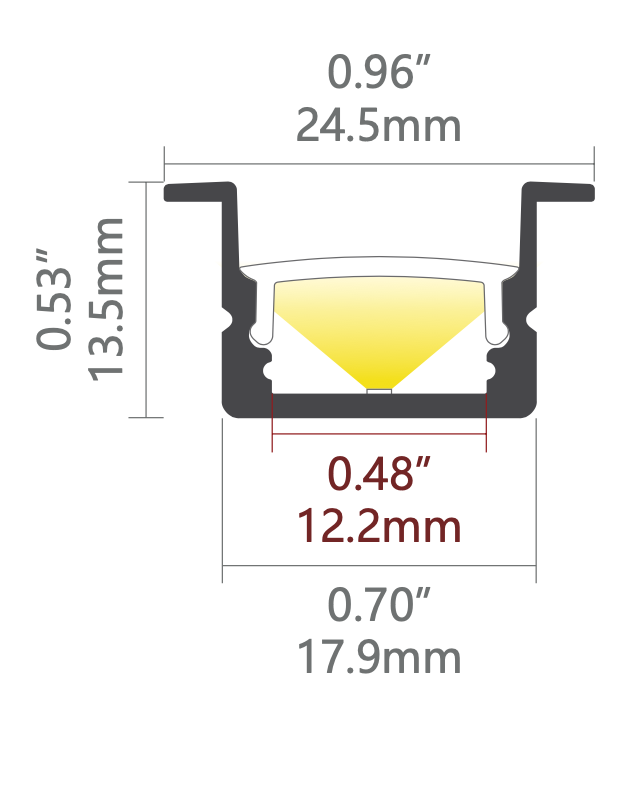

| Dimensions | 13.5 x 24.5 x Max 2M |
| Typ Product Code | ING-13.5x24.54.892270SANTR1200mm |
