Product Overview
The NEW Cove-Flex ING-20.7x24 plaster in profile is fitted with the Ingenious IP20HD-10, 10mm wide High Density LED board, a top quality LED strip designed for general use, engineered for realiabilty & longevity, The 10mm Wide, 2oz, 5 Amp rated Buss bar PCB construction can carry >120W of load powered from one end, all design criteria is to ensure reliability over the lifetime of the luminaire. A Typical 1M long section with 14.4W = 1195lm Max lengths = 2M (Longer lengths to order, BUT increase risk of damage and cost of transport) 55 degree distribution Opal transmission = 58% Milky = 75% Frosted = 88% Clear = 97% Black = 21%
Technical Specifications
Electrical Performance
Wattage
4.8W/M•9.6W/M•14.4W/M•19.2W/M•24W/M
Lumen Output
450lm/M•860lm/M•1195lm/M•1535lm/M•1870lm/M
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
78>93Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 922925927930935940850865CRI80CRI90 |
| Beam Angles (º) | 55 |
| Finishes (Baffle) | N/A |
| Finishes (Body/Bezel) | Silver Anodised - "SAN" White RAL9010 - "WH" White RAL9016 - "PWH" Black RAL 9005 - "BK" Anodised & Special RAL/BS colours on request |
| Accessories | End capsspring clips |
| IP Rating | 20 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Wall | [object Object] |
| Energy Efficiency Class | G>E |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |

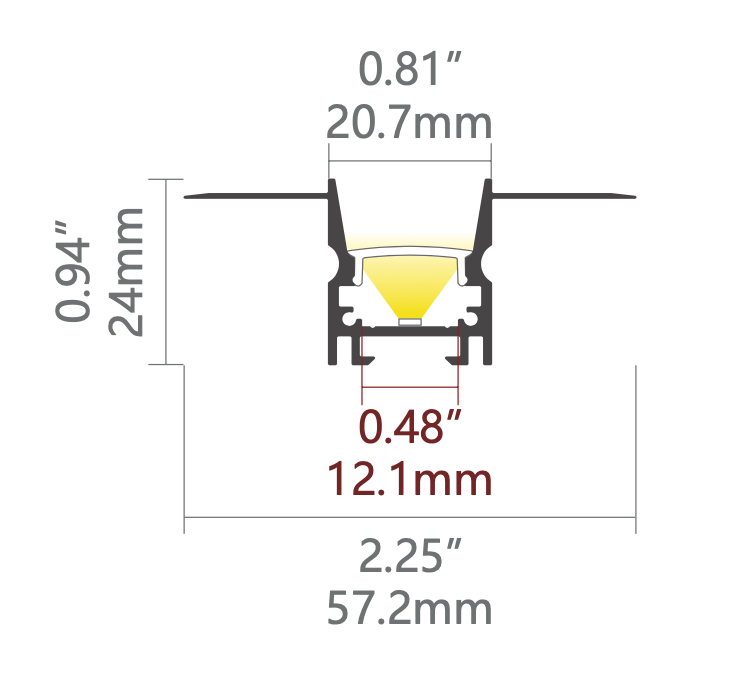

| Dimensions | 20.7x24 x Max 2M |
| Typ Product Code | ING-20.7x24/19.2/922/55/SAN/TR/2000mm |
