ING-WP2-17x17.1mm

ING-WP2-17x17.1mm

Product Overview

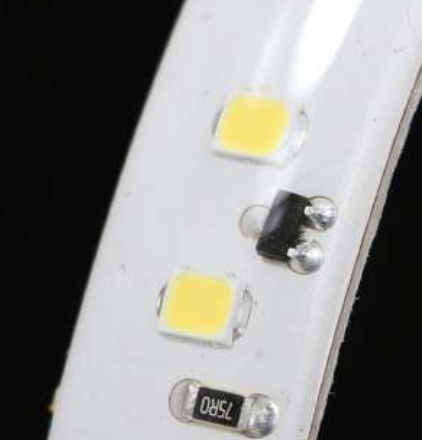

The NEW Cove-Flex ING-WP2 is WATERPROOF to IP67, constructed from UV stabalised and corrosion proof Polycarbonate its perfect for Spa or swimming pool environments where Chlorine or salt in the atmosphere can quickly degrade Aluminium & Stainless steel profiles. The ING-WP2 is fitted with the "Ingenious" IP20-HD, 10mm wide High Density LED board, engineered for realiabilty & longevity, The 10mm Wide, 2oz, 5 Amp rated Buss bar PCB construction can carry >120W of load powered from one end, bonded to an internal Aluminium Heatsink rail, all the design criteria to ensure reliability over the lifetime of the luminaire. A Typical 1M long section with 14.4W = 1195lm/M Max lengths = 2M (Longer lengths to order, BUT increased risk of damage and cost of transport)

Technical Specifications

Electrical Performance

Wattage
4.8WM9.6WM14.4WM
Lumen Output
4.8WM - 450lmM9.6WM - 860lmM14.4WM - 1195lmM
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
78>93

Other Technical Details

CCT/CRI Options (K)
2200K - "922"2500K - "925"2700K - "927"3000K - "930"3500K - "935"4000K - "940"5000K - "850"6500K - "865"
Beam Angles (º)
180
Finishes (Baffle)
N
A
Finishes (Body/Bezel)
Clear polycarbonate (PC)
Accessories
Polcarbonate Mounting clips316 St-Steel Mounting clips316 St-Steel Adustable brackets
IP Rating
IP67
Energy Efficiency Class
G>E
Control / Driver Options
Triac (TR)0-10V (010)DALI (DA)Bluetooth (BT)DMX (DMX)
Dimensions
17x17.1x2M Max
Typ Product Code
ING-WP2-4.8922PCTR1200mm
