Linear RigidFeatured

ING-17x49

ING-17x49

Product Overview

The NEW Cove-Flex "ING-17x49" profile is fitted with the Ingenious IP20HD, 10mm wide High Density LED board is a top quality LED strip designed for general use, engineered for realiabilty & longevity, The 10mm Wide, 2oz, 5 Amp rated Buss bar PCB construction can carry >120W of load powered from one end, all design criteria is to ensure reliability over the lifetime of the luminaire. Distribution = 2 x 60 degrees Opal transmission = 58% A Typical 1M long section with 2 x 14.4W = 2390lm / 2 x 19.2W = 3070lm Max lengths = 2M (Longer lengths to order, BUT increae risk of damage and cost of transport)

Technical Specifications

Electrical Performance

Wattage
4.8W•M•9.6W•14.4W
Lumen Output
450lm•M•860lm•1195lm
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
78>93

Other Technical Details

CCT/CRI Options (K)
922925927930935940850865CRI80CRI90
Beam Angles (º)
60
Finishes (Baffle)
N
A
Finishes (Body/Bezel)
Silver Anodised - "SAN"
White RAL9010 - "WH"
White RAL9016 - "PWH"
Black RAL 9005 - "BK"
Anodised & SpecialRAL
BS colours on request
Accessories
End caps316 St-Steel Mounting clips
IP Rating
20
Energy Efficiency Class
G>E
Control / Driver Options
on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX
Dimensions

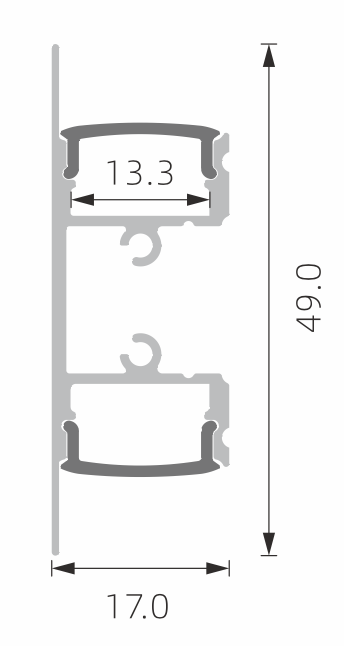

17x49xMax2M
Typ Product Code
ING-17x4914.492760SANTR2000mm
