Product Overview

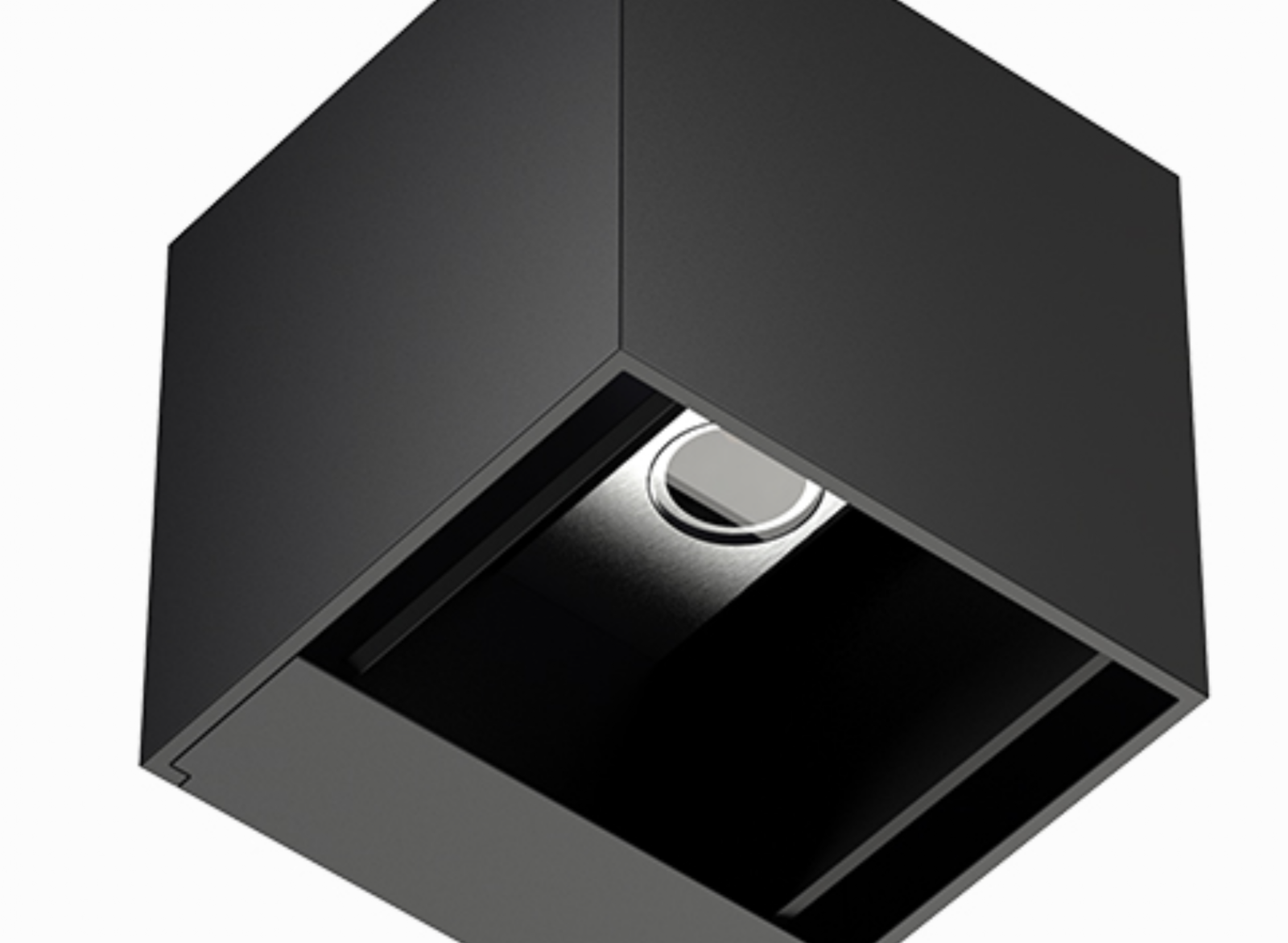

Cube - a simple architectural, beatifully engineered wall light for numerous applications, stairs, bathrooms, above beds, or used in sets to create a stunning feature. The sharp lines and infinitely adjustable distribution make it a very useful lighting tool, integral TRIAC dimming driver & LUMINUS CRI95 chips, 3 way integral terminal block all ensure a reliable >50,000hrs, easy to install classic fitting.
Technical Specifications
Electrical Performance
Wattage
2x2W
Lumen Output
2x150lm
Input Voltage/Current
240VAC
Typical Efficacy (lm/W)
75Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 2200K - "922"2500K - "925"2700K - "927"3000K - "930"3500K - "935"4000K - "940"5000K - "850"6500K - "865" |

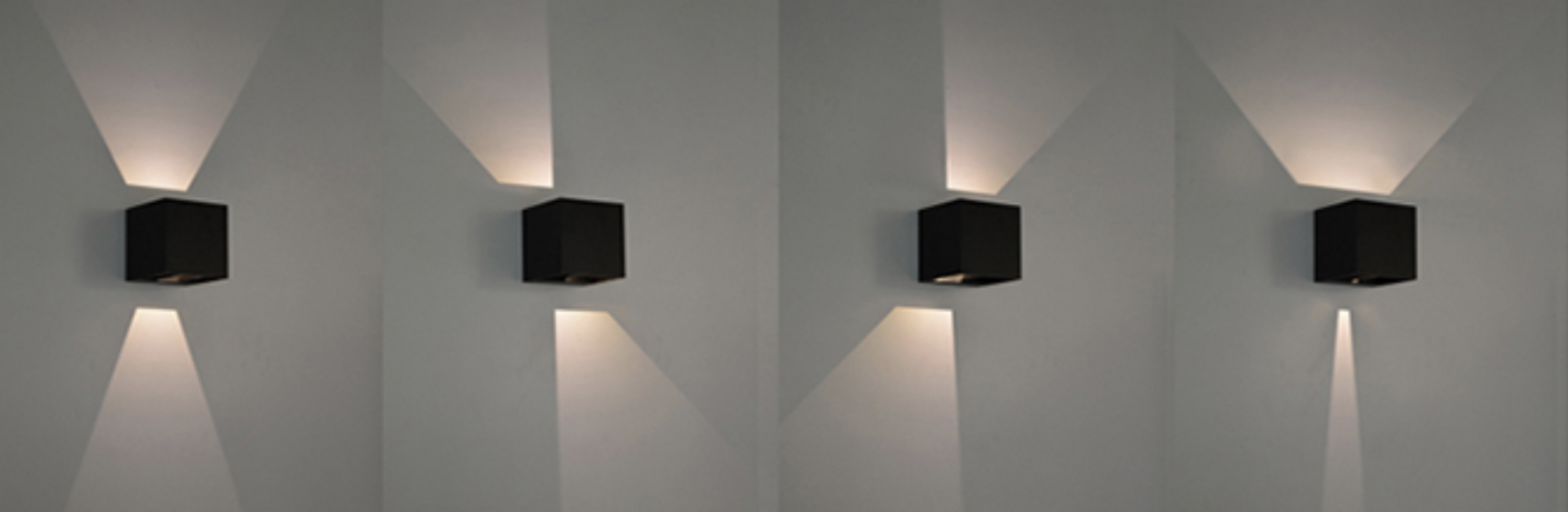

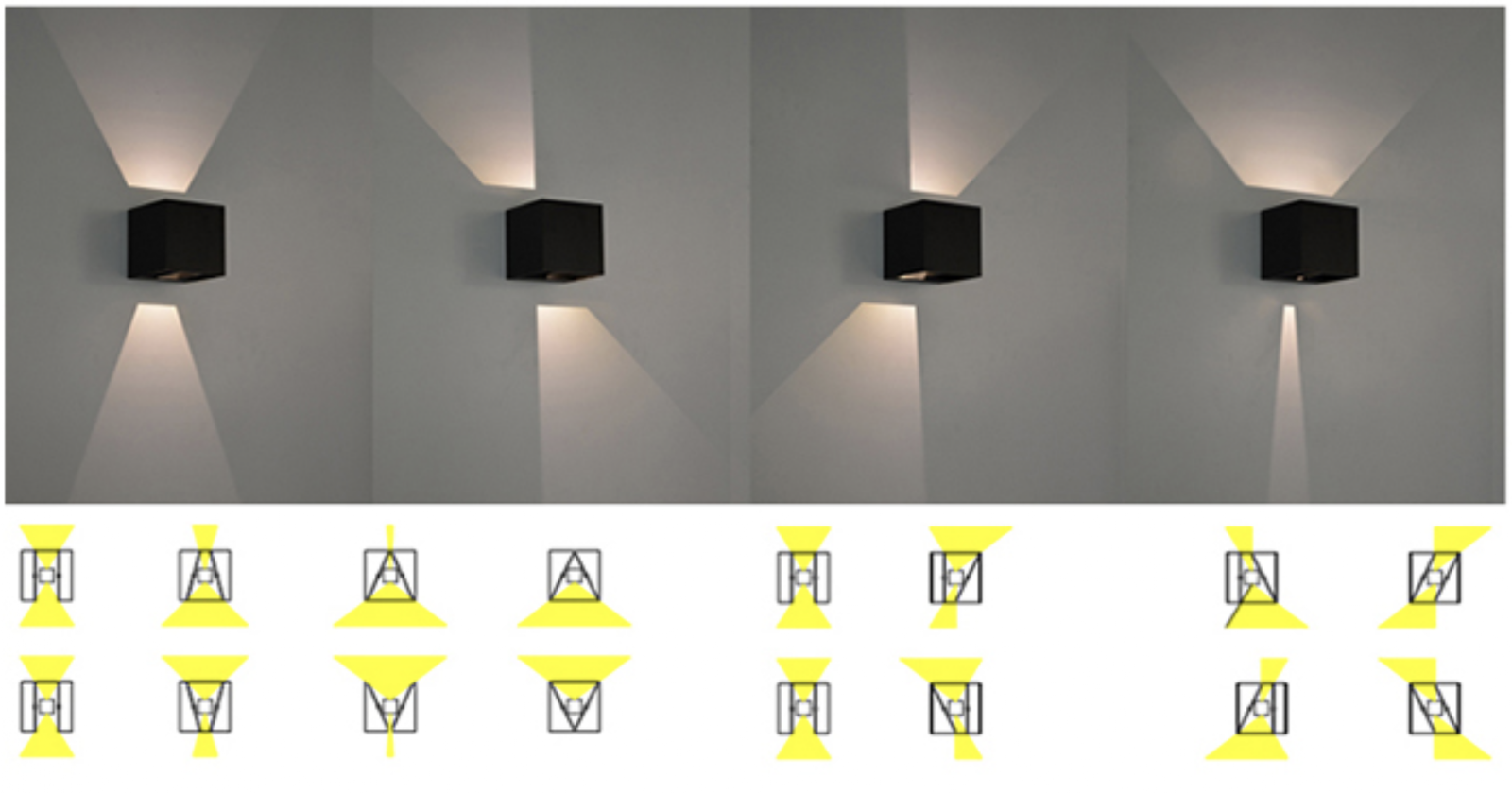

| Beam Angles (º) | Adjustable up & Down |
| Finishes (Baffle) | White - RAL9016 "PWH" Black - Ral 9005 "B" Silver Anodised - "ASV" |
| Finishes (Body/Bezel) | White RAL9010 - "WH" White RAL9016 - "PWH" Black RAL 9005 - "BK" SpecialRAL BS colours on request |
| Accessories | NA |
| IP Rating | 20 |
| Energy Efficiency Class | G>F |
| Control / Driver Options | TRIAC |
| Dimensions | 100x100x100mm |
| Typ Product Code | CUBE-100927SVWTR |
