Product Overview

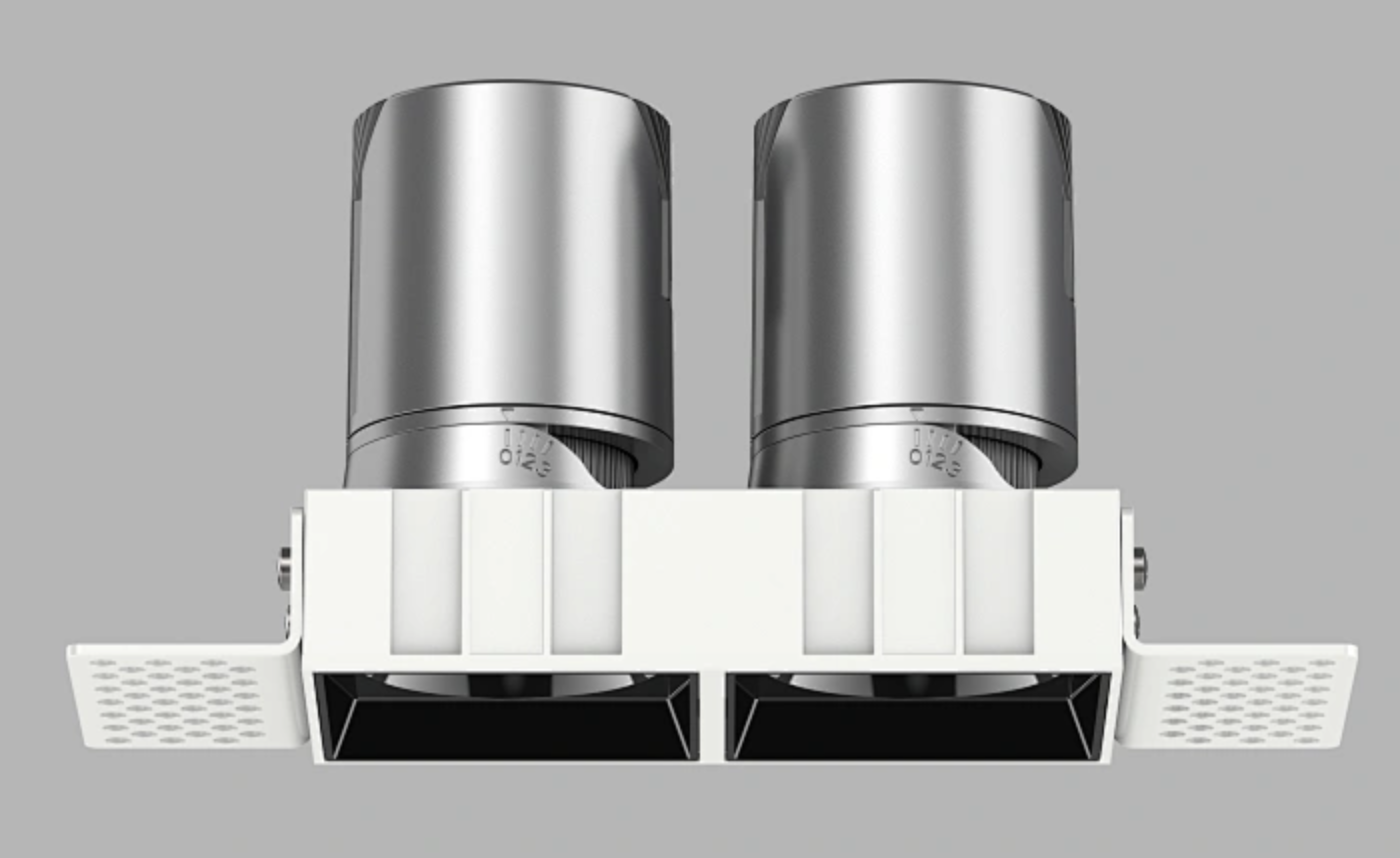

SQUARE PLASTER-IN x2 - The Updated & refined Gallery range includes 6/10/15 & 20W versions, using the latest Citizen VIVID led COB's, Round or square, Trimmed or Plaster-in bezels, All are adjustable to >30 degrees with round or oval aperture "Snoot" or standard Deeply Recessed Reflector and New Wall-wash versions. - Trimmed or Plaster in versions available in CRI90 or CRI97 - Wattages 6W, 10W, 15W or 20W - Numerous low-glare baffle versions to suit any application - Round & Oval aperture cutouts Supplied as standard with Matt black baffles (RB-Round baffle/OB-Oval baffle/R-reflector/WW-wall-Wash) - Huge selection of Reflector/baffle options & finishes to compliment any interior - CRI: Ra90 or Ra97 - CCT: 2700K/3000K/3500K/4000K or 5000K or Tuneable white versions - Beam angle: 15/24/36/50 degree - Indoor lighting, Flicker free, dimming to <0.1%, 5 year warranty - >70,000 hr life - Driver options - DALI/TRIAC/0-10V/DMX/Casambi/Zigbee"
Electrical Performance
Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 92793093594095097279730973597401800>4000CRI90CRI97 |
| Beam Angles (º) | 15243650º |
| Finishes (Baffle) | Matt black -MB Matt White -W Black Chrome -BCH Specular silver -SV Specular Gold -SG Specular copper -SC Specular Bronze -SB |
| Finishes (Body/Bezel) | White - Ral 9010 (W) Black - Ral 9005 (B) AnyBS RAL finish subject to min order qty |
| Accessories | Honeycomb Louvre |
| IP Rating | 20 |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | 6W - Cutout ⌀55 - ⌀62 x 80mm recess depth10W - Cutout ⌀75 - ⌀82 x 96mm recess depth15W - Cutout ⌀75 - ⌀82 x 96mm recess depth20W - Cutout ⌀95 - ⌀105 x 119mm recess depth |
| Typ Product Code | GAL-S-PIx2/6/927/15/MB/W/DA |
