in-ground uplights

JORD50-LPSE/350mA

JORD50-LPSE/500mA JORD50-LPSE/700mA JORD50-LPSE/900mA

JORD50-LPSE/350mA

Product Overview

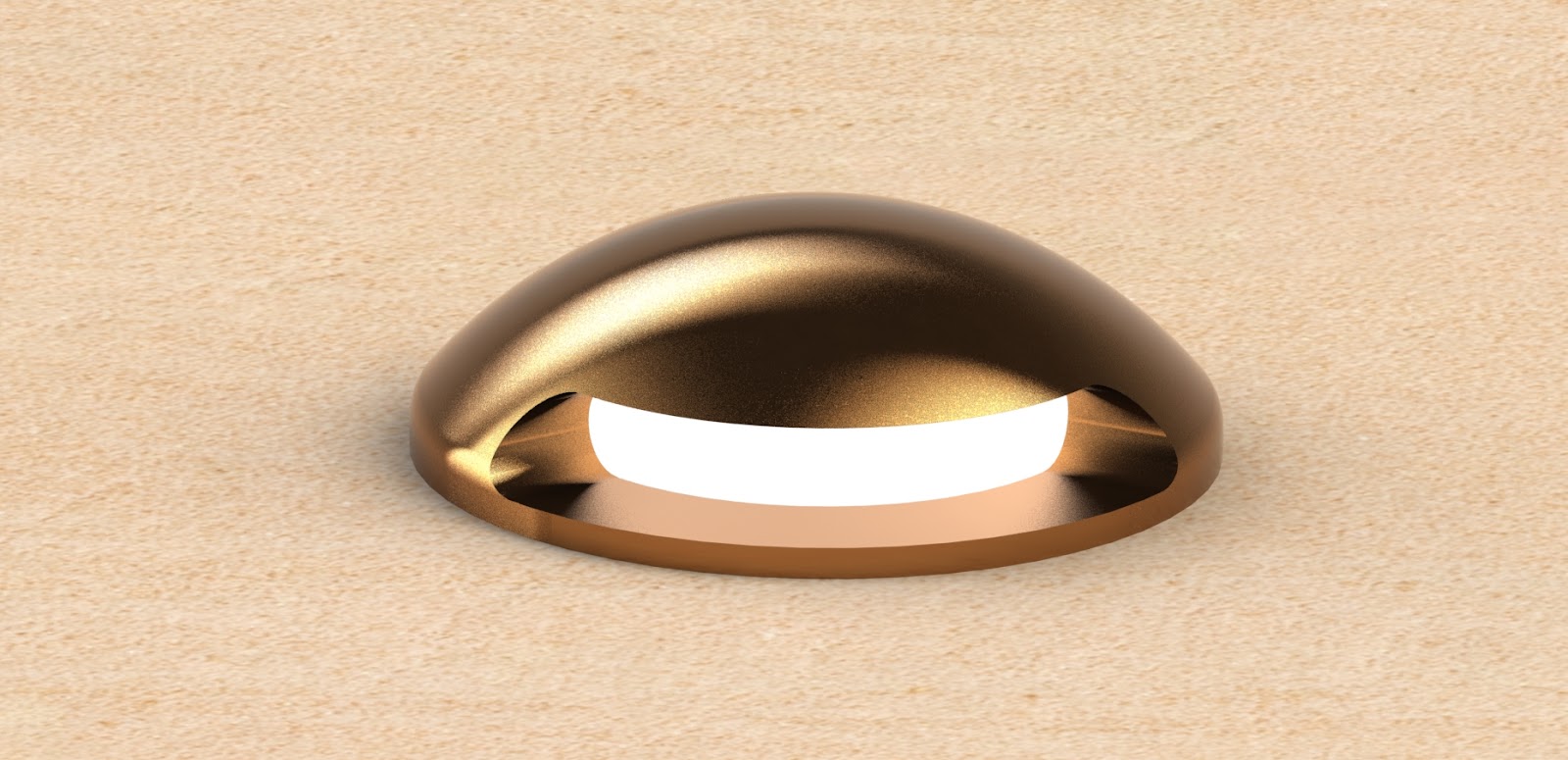

Jord 50 - Low-Profile Side emitter (NO uplight) with an optional 316 St-Steel Burial tube, This version incorporates a special Prism lens to direct light sideways, Jord is a patented family of precision machined, low-glare, VERY high lumen output (465>1162lms) in-ground or wall mounted LED luminaires. Utilising only the best materials and the very latest LED and lens technology to deliver outstanding outputs from such a small luminaire, the ingenious patented heat pipe, design & onboard microprocessor make the Jord 50 range simply the best miniature IP68 projectors available. Designed specifically to withstand the rigours of Motor Yacht installations where the environment demands exceptional corrosion resistance, if they can survive the Atlantic, they can easily withstand Saline pools, tropical gardens or Spa applications. This is simply the best "NO COMPROMISE" miniature in-ground uplight range available! 12VDC Constant Voltage option also available.

Technical Specifications

Electrical Performance

Wattage
4W•6W•8W•11W
Lumen Output
465lms•697lms•930lms•1162lms
Input Voltage/Current
11.4>12.1VDC / 350>900mA
Typical Efficacy (lm/W)
105>116

Other Technical Details

CCT/CRI Options (K)
27003000350040005000CRI95
Beam Angles (º)
8
Finishes (Baffle)
N/A
Finishes (Body/Bezel)
Polished St-Steel -PSS
Glass Bead Blasted semi-matt Stainless Steel -BBSS
Polished Bronze -PBZ
Glass Bead Blasted semi-matt Bronze -BBBZ
Various PVD finishes available
Accessories
Burial tube & wiring box: JORD50-WBJord 50 Burial tube: JORD50-F/CBT
IP Rating
68
Interior
[object Object]
Exterior
[object Object]
Wall
[object Object]
Floor
[object Object]
Energy Efficiency Class
F>E
Control / Driver Options
on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX
Typ Product Code
JORD50-LPSE/350mA/927/8/PSS/DA
