Recessed Downlight

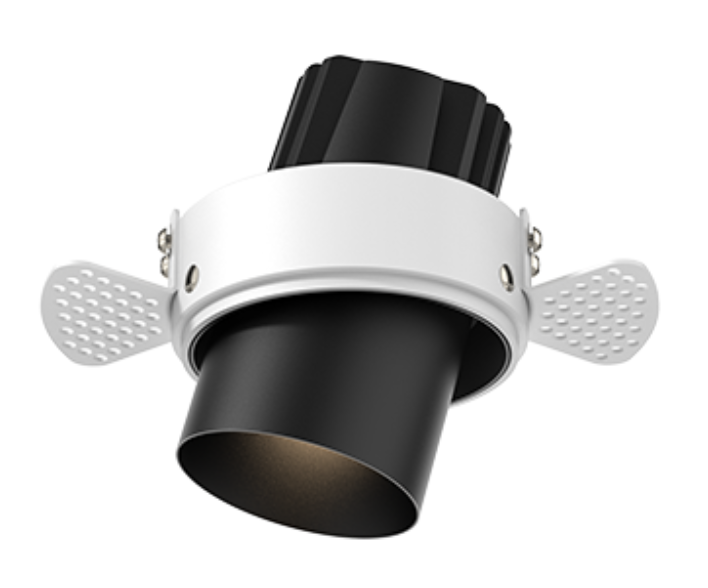

Yoda-II-Projector
Add "T" for Trimmed Add "F" for Flush-plaster in bezel
Product Overview
The NEW YODA range incorporating the Latest, Site replaceable CLU703 - CITIZEN VIVID COB, Tiny 4.2mm LES and very high led Density Give outstanding Control & Efficacy, coupled with the Yoda’s ingenious modularity delivers an outstanding package for universal usage. Snoot is a recessed Tilt & Rotate "Projector" adjustable downlight available with trimmed or trim-less UNIVERSAL bezels! Our Yoda II range features universal sizing and System universality. Fit our bezels and any of our variants can be fitted into those bezels: fixed/directional/wall wash/snoot/deep snoot etc.
Technical Specifications
Electrical Performance
Wattage
5W•6.8W•8.7W•10.7W•12.8W
Lumen Output
733lms•956lms•1168lms•1371lms•1566lms
Input Voltage/Current
34V/150ma•34.8V/250mA•37.5V/350mA
Typical Efficacy (lm/W)
122>146Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 27003000350040005000CRI95 |
| Beam Angles (º) | 4681015243655º |
| Finishes (Baffle) | Matt black -MB |
| Finishes (Body/Bezel) | White - Ral 9010 (W) Black - Ral 9005 (B) |
| Accessories | Honeycomb louvre (⌀33x3)Silicone Gasket to increase to IP56Ribbed glass (IP56 with glass added)Woven Glass (IP56 with glass added) |
| IP Rating | 2056 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Energy Efficiency Class | C>D |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | Cutout - ⌀75mmTrimless - ⌀72mmOD trimmed - ⌀82mmDepth 6/10W - 58mmDepth 15W - 96mm |
| Typ Product Code | Yoda-II-P-T/6/2700/24/MB/W/TR |
