Product Overview

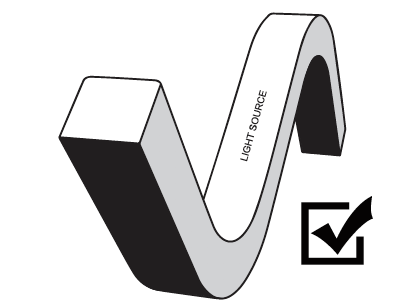

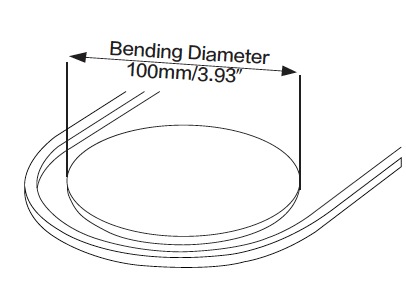

Poly-Flux 10x10mm, DC24V, CV & CC versions available, 11W/M, 10mm x 10mm (W x H), 41.66mm modules (24modules / M), 168LEDS/M, CRI>90, LUMILEDS 2835, single binning, Vertical Bending, 30cm Open Wire from Both Ends (End feed Cable Entry only), IP67, 5 Years Warranty. Max Run Length if CV - 5M fed from one End. Max Run Length if CC - 13M fed from one End. Typical outputs @ 11W/M 2200K - 800lm/M 2700K - 830lm/M 3000K - 850lm/M 3500K - 860lm/M 4000K - 915lm/M 5300K - 880lm/M
Technical Specifications
Electrical Performance
Wattage
11W
Lumen Output
800lm/M>915lm/M
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
77Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 92292793093594095095380CRI90CRI |
| Beam Angles (º) | 270º |
| Finishes (Baffle) | N/A |
| Finishes (Body/Bezel) | White |
| Accessories | Aluminium rigid mounting channel supplied in 2M lengths - PF1010-Alu/MCH/2MClear Polycarbonate mounting channel supplied in 2M lengths (recommended due to 270 degree output)- PF1010-PC/MCH/2MStainless steel Individual fixing springs (x2/bag) - PF1010-St-Steel/ClipsDIY on site 2 Pole Termination kit (IP66) - PF1010-TC-End (end feed only) |
| IP Rating | 66/67 |
| Interior | [object Object] |
| Exterior | [object Object] |
| Ceiling | [object Object] |
| Wall | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | 10x10mm |
| Typ Product Code | PF1010-10W/927/EF/5000mm |
