Product Overview

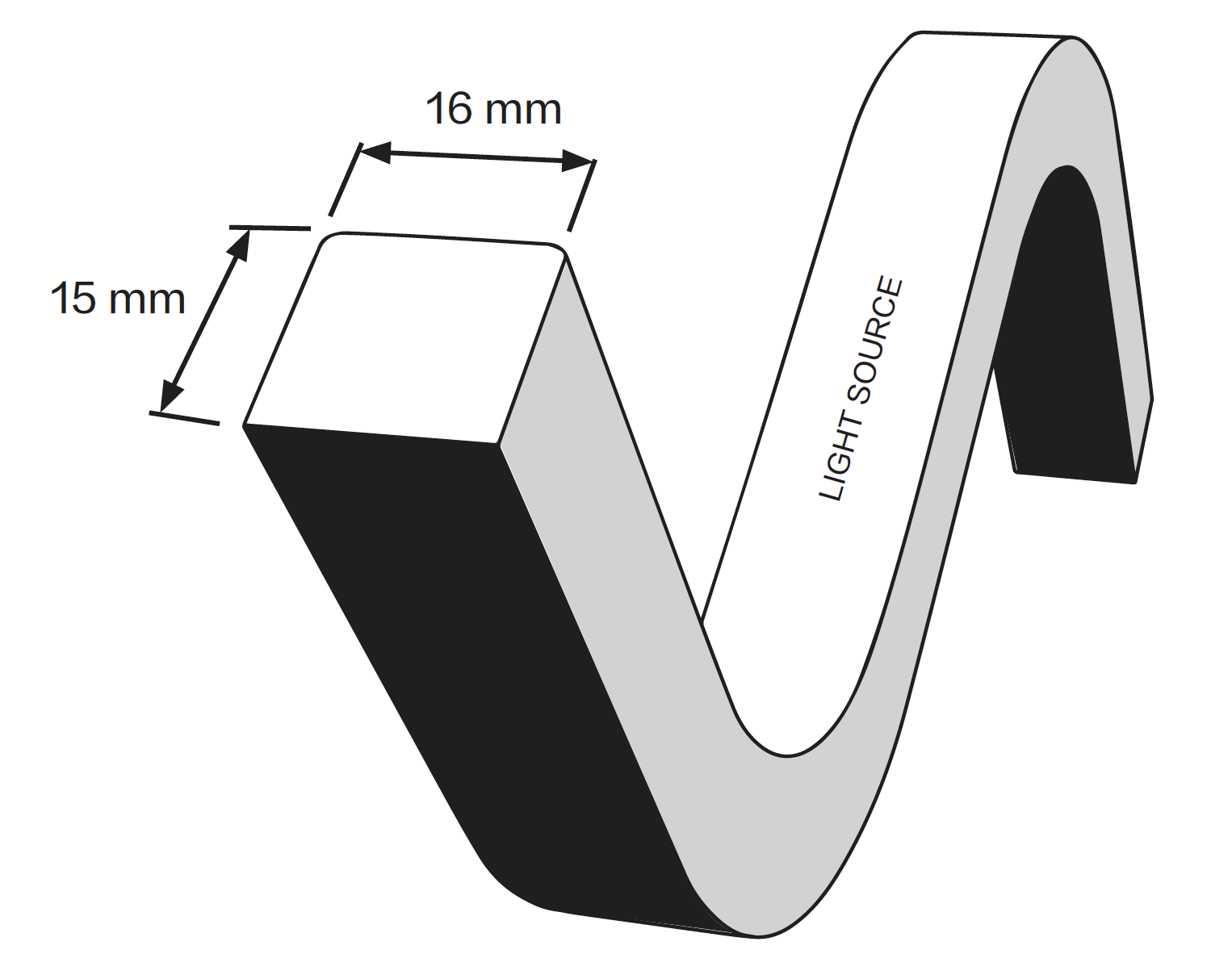

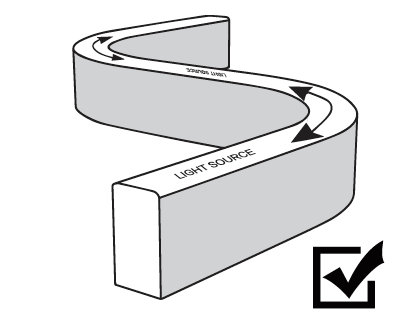

Poly-Flux 16x17mm this is our flagship Poly-Flux profile as it delivers the right proportions to accept the numerous CCT options & mounting arrangements required, Constant Current OR constant voltage options- DC24V, 4.8W / 9.6W or 14.4W/M, 16mm x 17mm (W x H), 50mm modules (20 modules / M), 140LEDS/M, CRI>90, LUMILEDS 2835, 2 Step binning, Vertical Bending, 30cm Open Wire from Both Ends (supplied with anti-syphon cable Ferrule) End, bottom or side feed Cable Entry, IP67, 5 Years Warranty, Extruded from Dow-Corning SilFlex, What have we missed?? -Max Run Length 4.8W = 30M -Max Run Length 9.6W = 20M -Max Run Length 14.4W = 15M (When fed from one end-CC versions only) Single colour options - White/Red/Green/blue: --- for single white color : Constant Current Design or Constant Voltage Design, LUMILEDS 2835 or Sanan 2835 LED - 922/927/930/935/940/950/953 --- for Red/Green/blue color : Constant Current Design or Constant Voltage Design, Sanan 2835 LED Dynamic white - 2700+5300K LUMILEDS 2835 LED, Constant Current Design. RGB - 10W/M Constant Current or Constant Voltage Design fitted with Sanan 5050LED RGBW - 16W/M Constant Current design fitted with Lumileds 5050, Constant Current or Constant Voltage Design, when fitted with Sanan 5050 LEDS White options: 2200K/2700K/3200K/4500K/5500K/6500K NOTE: We always recommend using Constant current versions if possible. MEDIA-D - 10W/M single colours - Blue/White/Red/Green (18 pixels/M) each pixel = 55.555mm, DMX: 24VDC Constant Voltage, fitted with Sanan 2835 LED. Typical outputs: 5W-2200K - 309lm/M 5W-2700K - 317lm/M 5W-3000K - 342lm/M 5W-3500K - 356lm/M 5W-4000K - 356lm/M 5W-5300K - 337lm/M 5W-5000K - 337lm/M 10W-2200K - 611lm/M 10W-2700K - 630lm/M 10W-3000K - 673lm/M 10W-3500K - 706lm/M 10W-4000K - 702lm/M 10W-5300K - 670lm/M 10W-5000K - 668lm/M 15W-2200K - 880lm/M 15W-2700K - 902lm/M 15W-3000K - 967lm/M 15W-3500K - 1016lm/M 15W-4000K - 1016lm/M 15W-5300K - 954lm/M 15W-5000K - 954lm/M 5W / 10W & 15W single colour RED/GREEN or BLUE RGB 10W/M RGBW 16W/M Red-58lm/M Green-194lm/M Blue-32lm/M W22-200lm/M W27-219lm/M W32-224lm/M W45-226lm/M W55-237lm/M W65-229lm/M Total Typ = 510lm/M @ 16W/M 10W/M - MEDIA-D single colour: Blue/Green/Red/White Constant Voltage - 24VDC 10W/M 126leds/M 18pixels/M (55.55mm 7 leds/module) DMX512 control, Max run 5M powered from 1 end, supplied in 5M reels (90 modules).
Electrical Performance
Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 922927930935940953850RGBRGBWMedia Digital80CRI90CRI |
| Beam Angles (º) | 120º |
| Finishes (Baffle) | N/A |
| Finishes (Body/Bezel) | White |

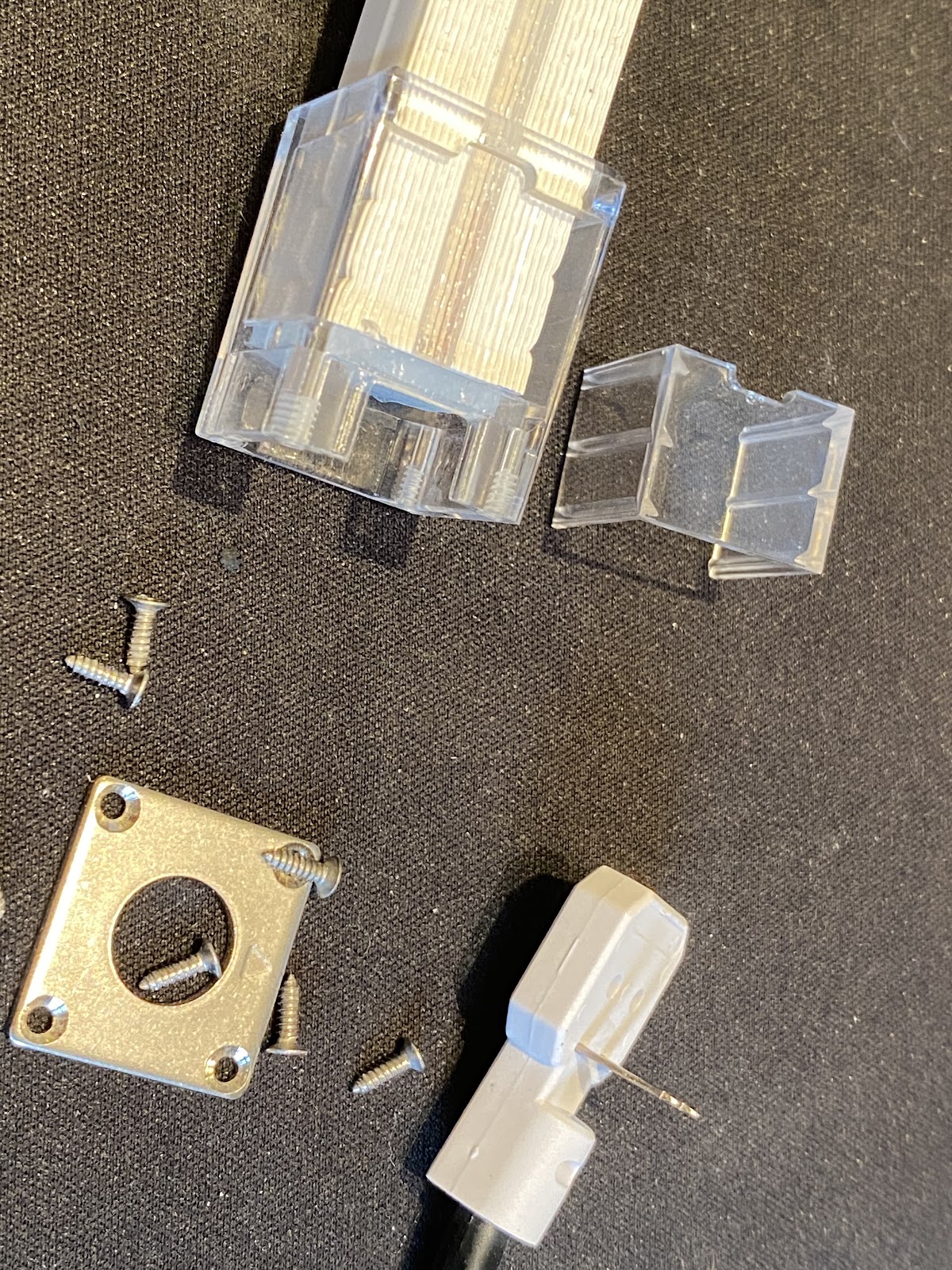

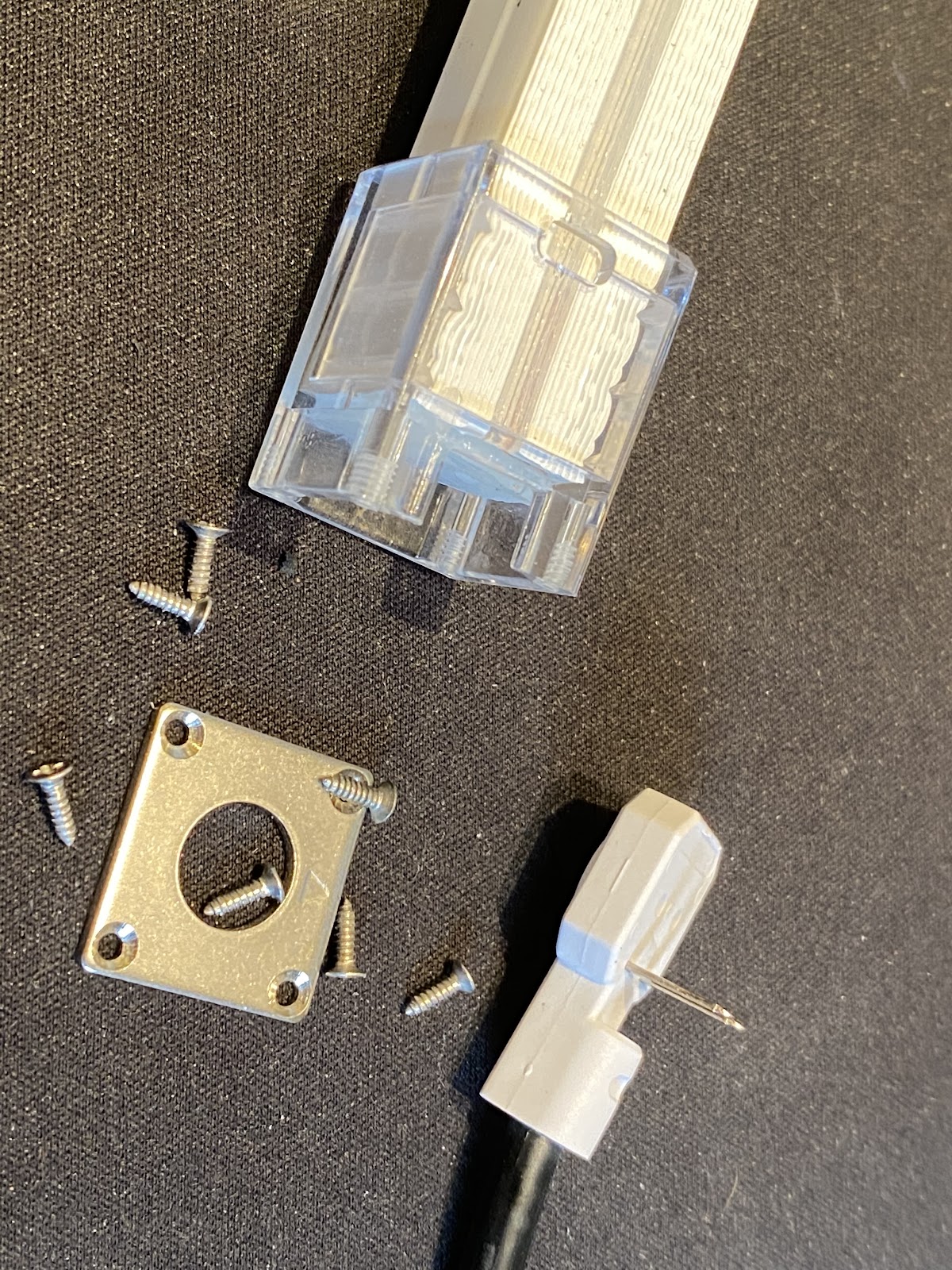

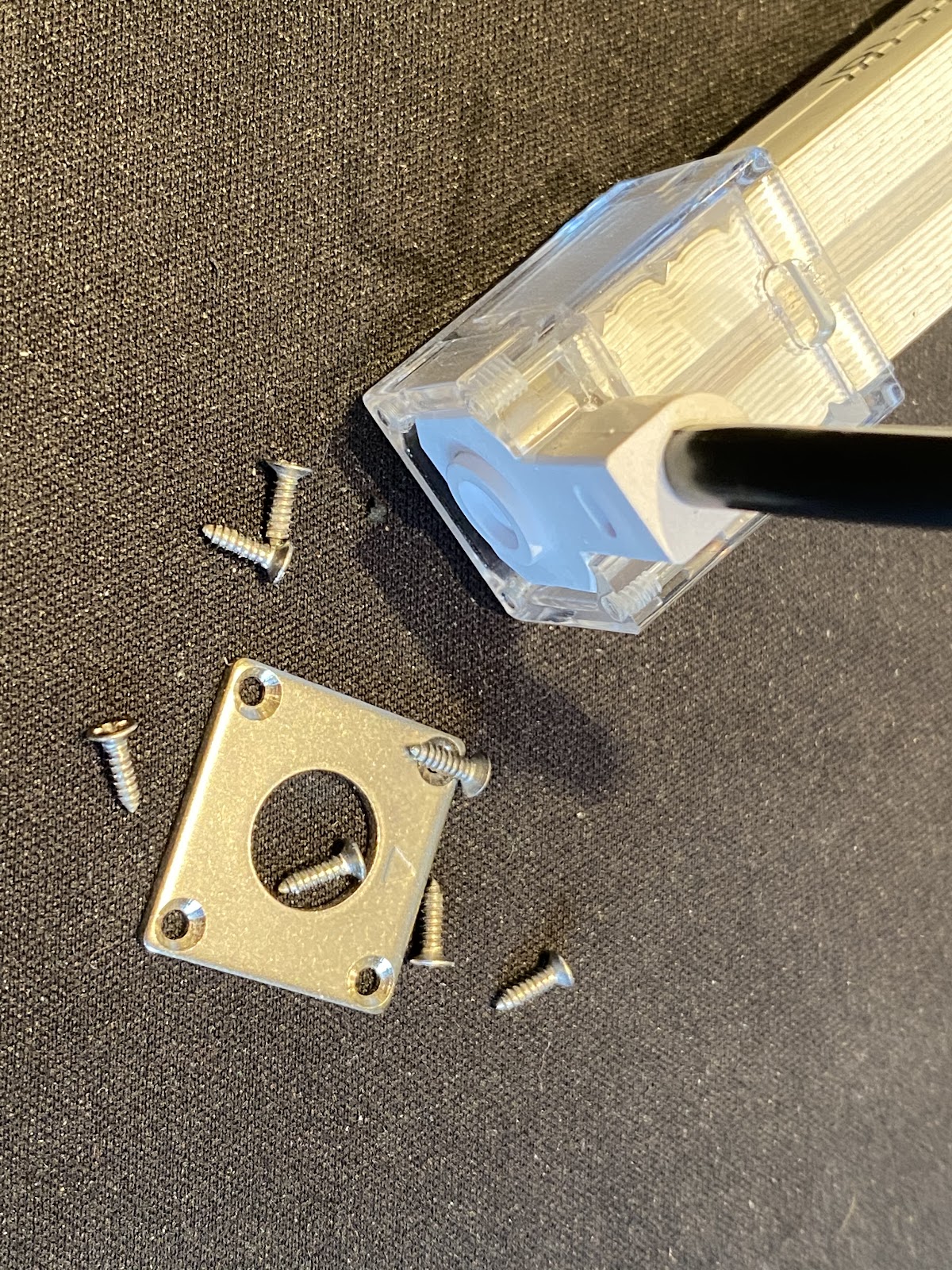

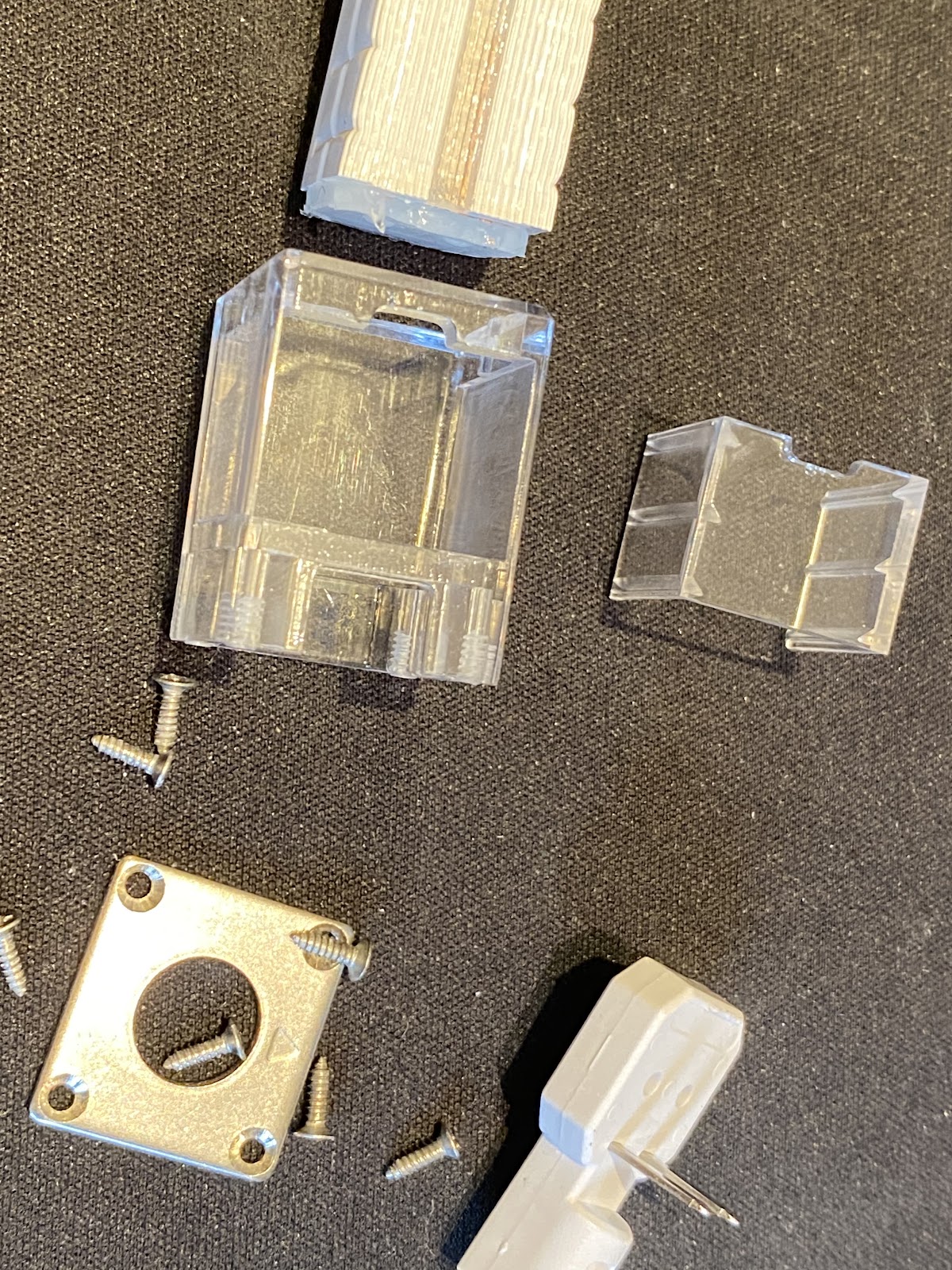

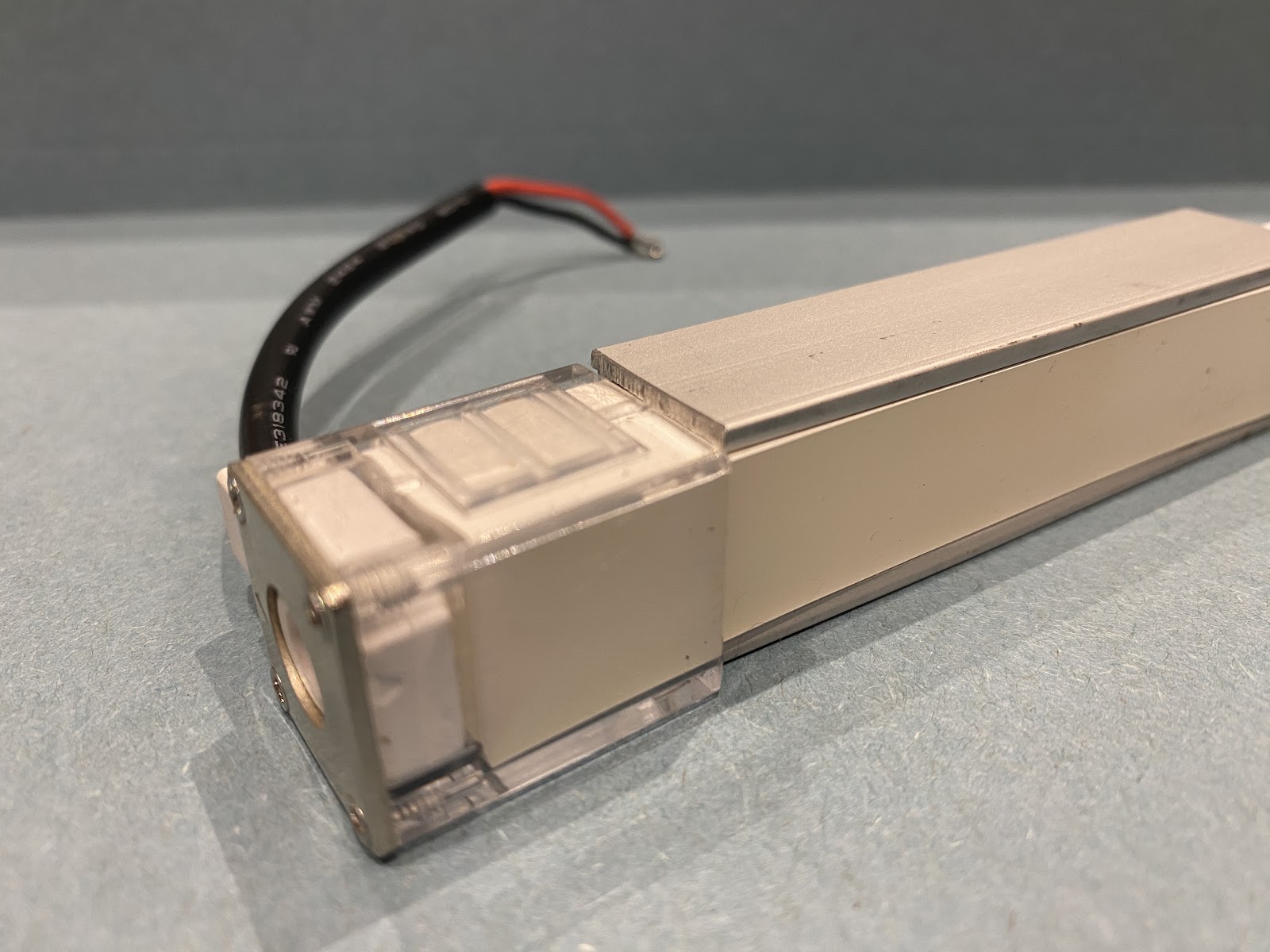

| Accessories | Aluminium rigid mounting channel supplied in 2M lengths - PF1617-Alu/MCH/2MAluminium Flexible Milled mounting channel supplied in 2M lengths - PF1617-Alu/F-MCH/2MAluminium rigid plaster-in channel supplied in 2M lengths - PF1617-Alu/PI-CH/2MAluminium Flexible Milled Plaster-in mounting channel supplied in 2M lengths - PF1617-Alu/F-PI-MCH/2MClear Polycarbonate mounting channel supplied in 2M lengths - PF1617-PC/MCH/2MTrimmed Aluminium rigid mounting channel supplied in 2M lengths - PF1617-Alu/T-MCH/2MAdjustable Mounting bracket for use with Rigid or Polycarbonate Mounting Channels - PF1617-M-BRKTL shape Mounting bracket for Rigid Profile - PF1617-EXT-BRKTIndividual Mounting clips (4/bag) - PF1617-MTG-ClipsDIY on site 2 Pole Termination kit (IP66) - PF1617-TC-End (End feed)DIY on site 2 Pole Termination kit (IP66) - PF1617-TC- Bottom (Bottom feed)DIY on site 2 Pole Termination kit (IP66) - PF1617-TC-Side-R (Side feed-Right)DIY on site 2 Pole Termination kit (IP66) - PF1617-TC-Side-L (Side feed-Left) |
| IP Rating | 66/67 |
| Interior | [object Object] |
| Exterior | [object Object] |
| Ceiling | [object Object] |
| Wall | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | 16x17mm |
| Typ Product Code | PF1617-CC-10W/927/EF/5050mm |
