Recessed Downlight

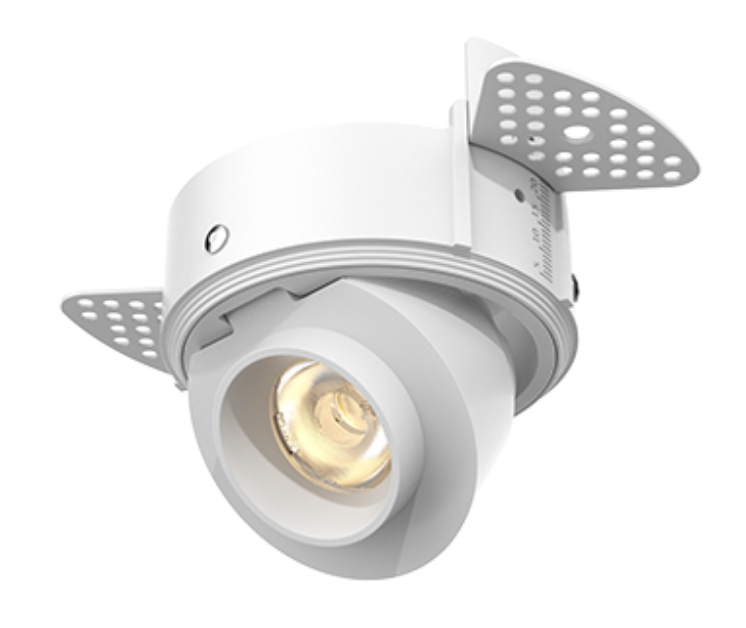

Yoda-II-Wall wash
Add "T" for Trimmed Add "F" for Flush-plaster in bezel
Product Overview
The NEW YODA range incorporating the Latest, Site replaceable CLU703 - CITIZEN VIVID COB, Tiny 4.2mm LES and very high led Density Give outstanding Control & Efficacy, coupled with the Yoda’s ingenious modularity delivers an outstanding package for universal usage. Wall Wash is a non-adjustable downlight housing special Asymmetric optics, available with trimmed or trimless UNIVERSAL bezels! Our Yoda II range features universal sizing and System universality. Fit our bezels and any of our variants can be fitted into those bezels: fixed/directional/wall wash/snoot/deep snoot etc.
Technical Specifications
Electrical Performance
Wattage
10W
Lumen Output
756lms
Input Voltage/Current
36V/250mA
Typical Efficacy (lm/W)
75.6Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 27003000350040005000CRI95 |
| Beam Angles (º) | 38x27º |
| Finishes (Baffle) | Specular silver -SV |
| Finishes (Body/Bezel) | White - Ral 9010 (W) Black - Ral 9005 (B) |
| Accessories | N/A |
| IP Rating | 20 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | Cutout - ⌀75mmTrimless - ⌀72mmOD trimmed - ⌀82mmDepth 10W - 66mm |
| Typ Product Code | Yoda-II-WW-T/6/2700/24/MB/W/TR |
