Product Overview

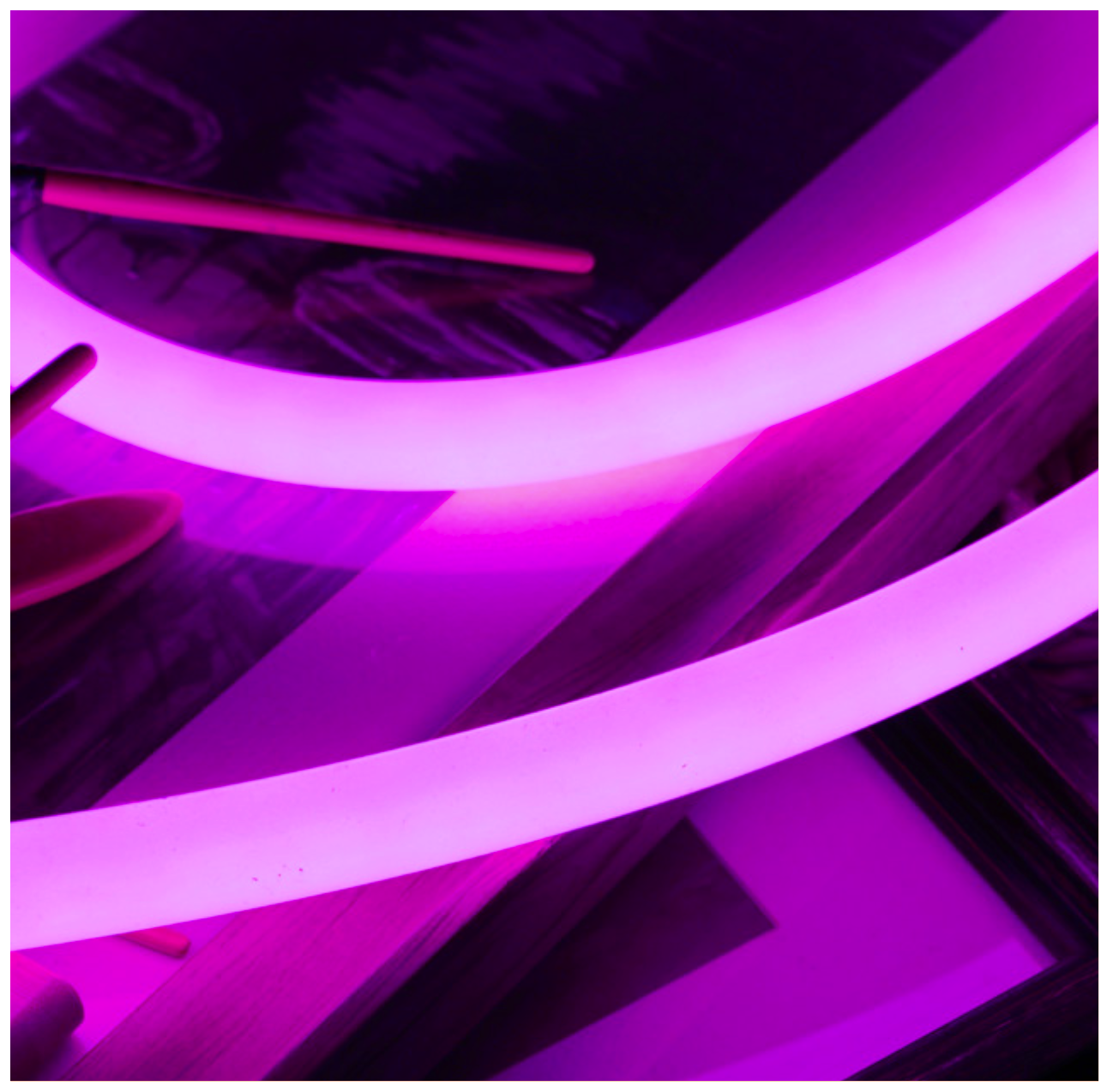

POLYFLUX DIA-25MM RGB flexible Silicone NEON, CV only - DC24V, 3.3W & 3.3W & 3.3W/M = 10W/M, Diameter 25, 50mm modules (20 modules / M), 140LEDS/M, CRI>90, RGB chips, multiple axis Bending, 30cm, 4 core Open Wire from Both Ends, End Cable Entry, IP65, 5 Years Warranty. Available with End or Side cable entry (EE/SE)
Technical Specifications
Electrical Performance
Wattage
10W/M
Lumen Output
RGB-•Red-56lm/M•Green-162lm/M•Blue-26lm/M•Total=248lm/M
Input Voltage/Current
24VDC
Typical Efficacy (lm/W)
24Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | RGBCRI80 |
| Beam Angles (º) | 360 |
| Finishes (Baffle) | matt white |
| Accessories | Polyflux D25 Polycarbonate Profile - LxWxH 2000x30x27.4mm - PF-D25/PC-Profile/2MPolyflux D25 Open Polycarbonate clips - LxWxH 20x30x27.4mm - PF-D25/PC-O-clips/20mm (4pcs/bag)Polyflux D25 Closed Polycarbonate clips - - PF-D25/PC-C-clips/20mm (4pcs/bag)Polyflux D25 Open Polycarbonate clips - suspension sets - - PF-D25/PC-O-Susp kits/20mm (2pcs/bag)Polyflux D25 Closed Polycarbonate clips - suspension sets - - PF-D25/PC-C-Susp kits/20mm (2pcs/bag)Ceiling Mounted Collet suspension node: Machined from Aluminium alloy - allows factory assembled PF-D25 to pass through collet and twist to lock/Unlock. |
| IP Rating | IP65 |
| Interior | [object Object] |
| Exterior | [object Object] |
| Ceiling | [object Object] |
| Wall | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | Dia 25 x Max5M |
| Typ Product Code | POLYFLUX-D25-RGB/SE/5000mm |
