Recessed Downlight

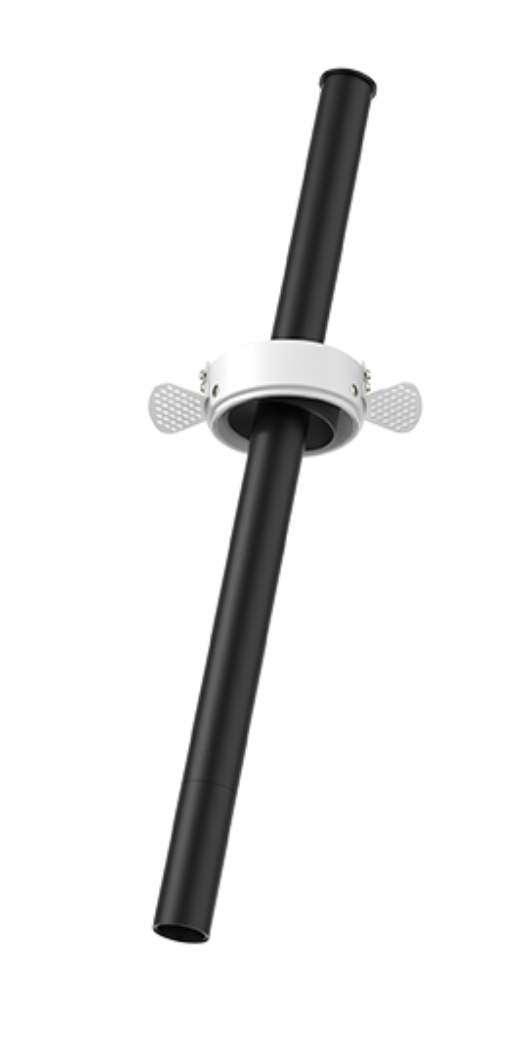

Yoda-II-Tubespot
Add "T" for Trimmed Add "F" for Flush-plaster in bezel
Product Overview
The NEW YODA range incorporating the Latest, Site replaceable CLU703 - CITIZEN VIVID COB, Tiny 4.2mm LES and very high led Density Give outstanding Control & Efficacy, coupled with the Yoda’s ingenious modularity delivers an outstanding package for universal usage. Recessed adjustable tubular spot that retracts in & out of the ceiling, available with trimmed or trimless UNIVERSAL bezels! Our Yoda II range features universal sizing and System universality. Fit our bezels and any of our variants can be fitted into those bezels: fixed/directional/wall wash/snoot/deep snoot etc.
Technical Specifications
Electrical Performance
Wattage
6W
Lumen Output
327lms
Input Voltage/Current
36V/150mA
Typical Efficacy (lm/W)
55Other Technical Details
| SPECIFICATION | DETAILS |
|---|---|
| CCT/CRI Options (K) | 27003000350040005000CRI95 |
| Beam Angles (º) | 46810152436º |
| Finishes (Baffle) | Matt White -W Matt black -MB Gold -SG |
| Finishes (Body/Bezel) | White - Ral 9010 (W) Black - Ral 9005 (B) |
| Accessories | Honeycomb louvre (⌀33x3)Ribbed glass (IP56 with glass added)Woven Glass (IP56 with glass added) |
| IP Rating | 20 |
| Interior | [object Object] |
| Ceiling | [object Object] |
| Energy Efficiency Class | G>F |
| Control / Driver Options | on-off-SWTRIAC-TRDali-DACasambi-CAZigbee-ZBDMX-DMX |
| Dimensions | Cutout - ⌀75mmTrimless - ⌀72mmOD trimmed - ⌀82mmTube spot -⌀25 x 427mm |
| Typ Product Code | Yoda-II-TS-F/6/2700/10/MB/W/TR |
